Heat Resistant Foam Xlpe Insulation Rolls

FOB Reference Price:Get Latest Price
$0.30 - $5.00 / Meters | 1000 Meter/Meters (Min. Order)
Samples - $0.10 /Meters, 1 Meters (Min. Order): Buy Samples
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CYG TEFA
Model Number:
xpe
Type:
Other Heat Insulation Materials
width:
1.8meter
Density:
28-40kg/m3
hardness:
15-80 Shores
Certificate:
ISO9001, RoHS, SGS, Reach, etc
Features:
thermal insulation
Material:
closed cell PE Foam
Name:
xlpe insulation rolls
Raw material:
LDPE
Supply Ability
Supply Ability:
10000000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Common Packing or Customized
Port
Shenzhen
Product Description





Cross-linked Closed Cell Polyethylene Foam




XPE FOAM is a chemically cross-linked, closed-cell structure and low density plastic foam. The XPE foam can be easily processed again into different shape. Its water absorption is low and with a excellent thermal insulation performance.

Chemical cross-linked polyethylene foam(XPE)

Made by high temperature foaming after extrusion,cross-linked and foaming at the same time.it is the ideal foam for applications where support and durability are crucial.







XPE foam Regular Dimension

Normal width in1000mm,1200mm,1300mm,1500mm.

Normal length in50m,100m,150m,200m.

Thickness and Density

Single fold

Thickness

2-10MM

Density

100-240kg/m3

Can be customized as requirement

Thickness Muti-fold

Thickness

10-100MM

Density

28-100kg/m3



The properties of PE foam



Shatter proof

Cost-effective

Easy to fabricate

Non-dusting

Excellent buoyancy

Superb strength, and tear resistance

High shock absorption

Lightweight



PE FOAM ROLL

Density

28-300kg/m3

Roll size

Width:1060mm-1080mm

Length:300m-500MM

Thickness

1-10mm

Regular Foam Color

black, white, grey, customized color are available

Delivery Time

7-14 workdays

Certificated

SGS, REACH, RoSH,ISO9001-14001,IATF16949

Usage

double sided and single sided foam tape

Characteristics

· Excellent heat insulator

· Low heat conduction

· Durable and high resilience

· Resistance to chemical and grease subjection

· Environmentally friendly with non toxic properties

· Resistance to wear and tear

· Excellent thickness

· Weather resistant

· Simple to die cut or slit





The Spec. of XPE Foam





Test item

Items

5 Times

8 Times

10 Times

15 Times

20 Times

25 Times

30 Times

35 Times

Density kg/m3

200±30

125±15

100±10

66.7±8

50±6

40±4

33.3±3

28.6±2

Shore

Hardness

60~70

50~60

45~50

35~45

30~35

25~30

18~25

13~18

Water absorbtion (23℃±2℃,24h)g/cm2

≤0.02

≤0.02

≤0.03

≤0.03

≤0.04

≤0.04

≤0.05

≤0.05

Heat conductivity

K value w/m.k

≤0.092

≤0.082

≤0.072

≤0.062

≤0.053

≤0.047

≤0.041

≤0.038









PE Foam Application

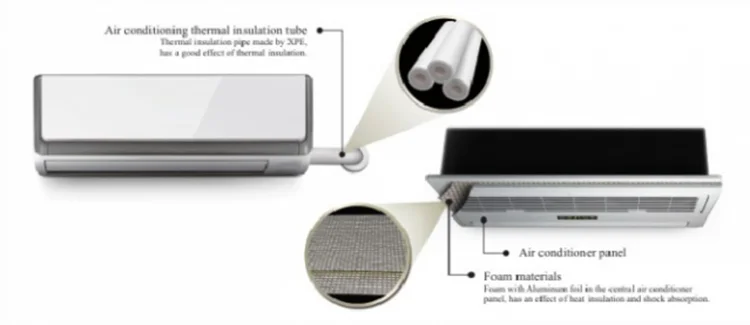

  • Automotive industry,
  • Acoustics, aircraft industry,
  • Houseware, building industry,
  • Electronics
  • Packaging
  • Sport and leisure industry

















Performance

Performance





Good waterproof performance,thermal insulation and sound absorption



The cross-linked closed-cell structure can block water molecules from the outside,insulation heat to go through,and isolated noise.



Shock absorption

Soft texture and good resilience enable foam to have a shock absorption effect and play a protective role.



Good fir retardancy



Adding specific chemical flame retardants to make foam non-flammable



Other performance

  • Easy to fabricate
  • Cost-effective
  • Extremely low odour
  • Non toxicFlexibilityAnti-aging
  • Weather resistance
  • Anti-slip/anti-skidding
  • Safety and eco-friendly
  • Good pliabilityDew resistance



Packing And Shipping





Certificate







Our Services



About CYG



Bussiness scop:Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.



Years Of Experience

17 years of production experience.



Scale Of Factory

17 production lines : 9 production lines in Shenzhen and 8 production lines in Huzhou .



Production Capacity

Annual  6000 tons



Why choose us

1.The biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China

2.The most complete cross-linked polyethylene foam products.

3.Certificate:  UL, ISO, SGS, Rohs, Reach , CE

4.OEM service

5.High quality,

6.Defective goods after sale service.



Cooperative Partner

 iPhone, Samsung, Gree, Haier, TCL,  Nike, Flextronics, General Motors, BYD, PPL, etc.



CYG TEFA offers the best solution for polyethylene foam production,

We supply PE foam in rolls, the length of each roll can be customized to meet customer’s requirement.

The PE foam product can also be provided on the sheet as a request.

Here support foam die- Cutting,Lamination Adhesive ,Sheeting, Perforating & Skiving.

All the service are focused on quality of products and satisfied our customer.
