HVAC thermal insulation XPE foam and IXPE foam manufacturer

FOB Reference Price:Get Latest Price
$0.23 - $2.22 / Meters | 3000 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
CYG TEFA
Model Number:
LDPE
Material:
pe foam
Specification:
customized
Length:
customzied
Thickness:
1mm-4mm, 1mm-12mm
Standard:
ROHS SGS ISO REACH
Name:
HVAC insulation material
Raw material:
PE
Density::
20-300Kg/M3
Working Temp::
-50°C to 110°C/-40° C to 85°C
Surface:
Aluminum foil
color::
black,white,gray,brown,yellow and so on
Connection:
Glue
Application:
HVAC thermal insulation
Feature:
Durable
Supply Ability
Supply Ability:
100000 Square Meter/Square Meters per Week
Packaging & Delivery
Packaging Details
common packing with pe bag or packing according to customers' requests
Port
shenzhen
Picture Example:
package-img
package-img
Video Description
Product Introduction

PE foam

Closed cell cross-linked polyethylene foam product is the main raw material polyolefin, foam blowing agents and other additives have been mixed, and then extruded through the extruder, through the industrial electron accelerators produce high-energy electron beam irradiation to Cross-linking (and therefore different from the conventional chemical cross-linking, chemical cross-linking agent DCP toxic), thus changing the molecular structure of polyolefins into a tight three-dimensional network structure by free foam, stereotypes, and a series of follow-up processing of integer Process, to produce a high performance, high quality, delicate appearance, feel comfortable, good performance of secondary processing, non-toxic, tasteless grade closed-cell foam material.


Two major types of cross-linked PE foam are:

1. Irradiated Cross-linked polyethylene foam(IXPE FOAM) is very fine celled microcellular foam. Irradiated cross-linked foam is used for medical applications, heart forming, and high end protective packaging and consumer products. This foam can actually be printed on very clearly.

2. Chemically cross-linked foam(XPE FOAM) also has good physical properties, but has a larger more random cell structure. Chemically cross-linked foam can also be used for packaging, heat forming and a large variety of applications.

Image details
Application

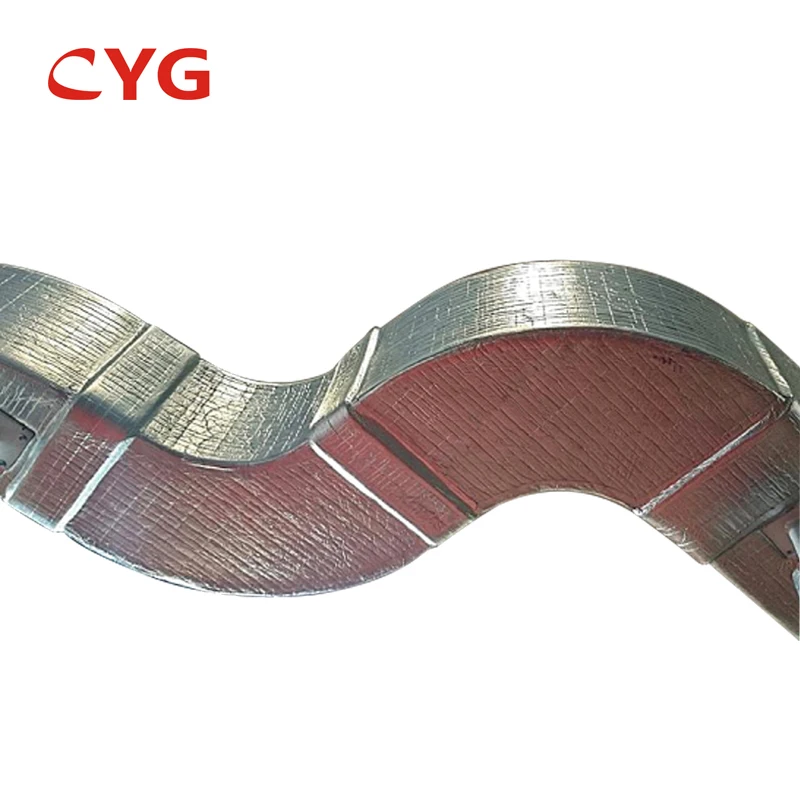

HVAC insulation material

Chemically Cross Linked Polyethylene insulation also known as XPE or XLPE Insulation is new age widely used insulation material in HVAC industry as well as for Plumbing and hot water pipe insulation.
Being the leading names in the industry, we offer an extensive range of Duct as well as Pipe form XLPE / XPE Insulation that is acclaimed among the clients for high quality and smooth operations. They are thermostatically balanced in nature and have long service life.

Function

Temperature control
Energy conservation
Condensation Control

Used in

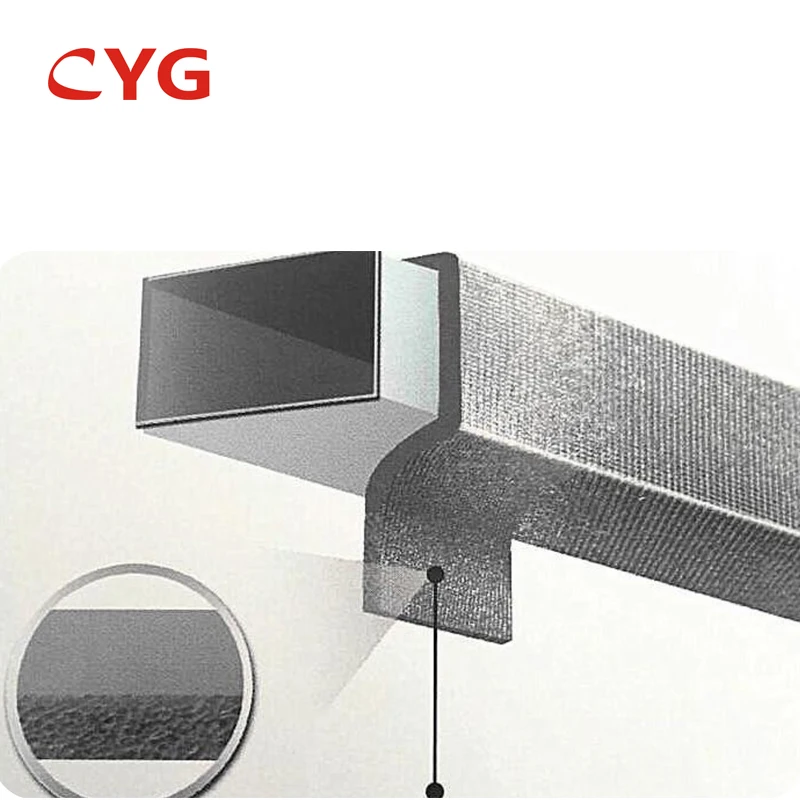

Duct Insulation
Under Deck Insulation
Cold Insulation
Hot Water Pipe Insulation
Tank Insulation for temperature upto 80 Deg C

Features

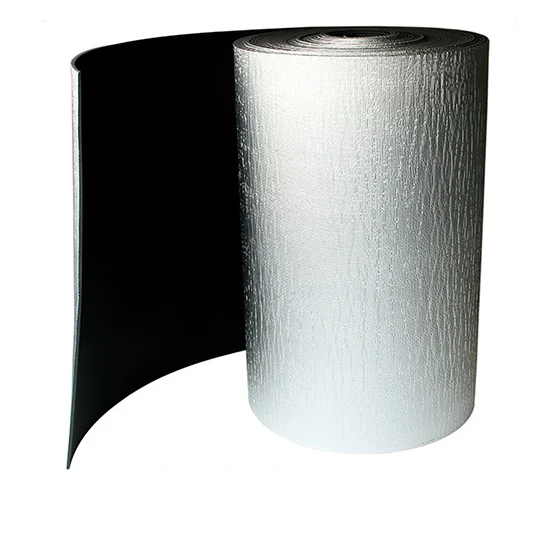

1.PE foam+pure aluminum foil (coated aluminum foil)
2.Reflecting up to 97% of radiant heat
3.Excellent fire properties
4.Excellent acoustic insulating properties
5.Environmentally/ Eco-friendly and fibre-free

Fire-retardant
Class A
Color
Black or Gray
Thickness
10-30mm
Lenth
25-30meter
Application
HVAC thermal insulaton
Aluminum foil
Coated alu foil
Adhesive
Available
Width
1-1.6meter
Package
Poly bag
Function
Heat insulation
Product Processing
Why Choose Us

About us

CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products.

Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.


CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
We are committed to developing,manufacturing and selling cross-linked PE foam.

Over the years,we have developed 3 production bases in Shenzhen,Hangzhou,Chongqing,and 8 production lines of all kinds,with annual production capacity of 4000 tons

All our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval.

Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc. Now, we have 2 factories and 17 production lines...

And we have 11 production lines for production.Hope to cooperate with you.


Quality control

CYG has perfect quality control equipment and strict quality test procedure to ensure the quality and safety.

Equipment & technology

Introduction of Korean professional equipment and technology to meet customers' quality needs.

Service

Factory direct selling with lower price, sooner leadtime, better customized service.
Samples in stock can be arranged in one working day.

Main Products

XPE foam

Made by high temperature foaming after extrusion,cross-linked and foaming at the same time.it is the ideal foam for applications where support and durability are crucial.

IXPE foam

IXPE foam is produced by compounding PE with some special padding and foaming material,
then crosslinking by irradiation and foaming which is considered as polymer material.

PP foam

Irradiation cross-linked Polypropylene (IXPP) foam is a kind of high-performance closed cell foaming material which is made of polypropylene and various fillers, additive, and foaming agents various material.

Construction

Expansion joint fillers, water proofing of terraces , roofs, foundation wraps,
sound barrier underlay, false ceilings, structural glazing.

Automotive

Roof tops, engines, bonnets and drivers cabin insulation, door panels and seat linings, floor mats, carpet underlay, upholsteries, sun visors and car AC insulations etc.

HVAC

Pipe insulation,tube insulation,duct insulation.

FQA

What is PE foam?

Polyethylene foam is a strong, resilient closed-cell foam. Ideally foam material suited as the material or part of a material required in products requiring a shock absorbing, vibration dampening, insulation, barrier or buoyancy component etc.

Why choose Low-density polyethylene foam?

Low-density polyethylene foam has numerous applications because of its many desirable properties including water-resistance, chemical resistance, energy-absorbance, buoyancy and cushioning characteristics. Compressive strength is greater in denser foams, decreasing as density decreases. Low-density foams tend to exhibit more compressive creep, meaning they become less thick over time, than higher-density foams.

What's the application of insulation?

Our insulation products are widely used on roofing, external wall, floor, HVAC pipe, transportation and any other places needing insulation

What's the difference between pure aluminum & metallic aluminum(MPET)?

Pure aluminum is metal film which can be fireproof, while metallic aluminum(MPET) is just plastic film which can be fire.

What's the difference between XPE & EPE?

 Both XPE and EPE are polyethylene foam, but their foaming process are different. XPE with normal density of 33kg/m3, and EPE is 18 kg/m3; XPE can be fireproof, while EPE is not; Also XPE has longer use life than EPE, but EPE is much cheaper.

What's the structure of your pure aluminum film?

We use the pure aluminum film with PET/AL/PE layers, the PET can protect Al from oxidation and corrosion.

What's the R-value?

he R-value differ with material structure and thickness, normally rang from 2.4-3.5.

What's the use age?

If use indoor, can be 5-8 years; if use outdoor, can be 1-3 years; if use inside the wall, can be permanent.
