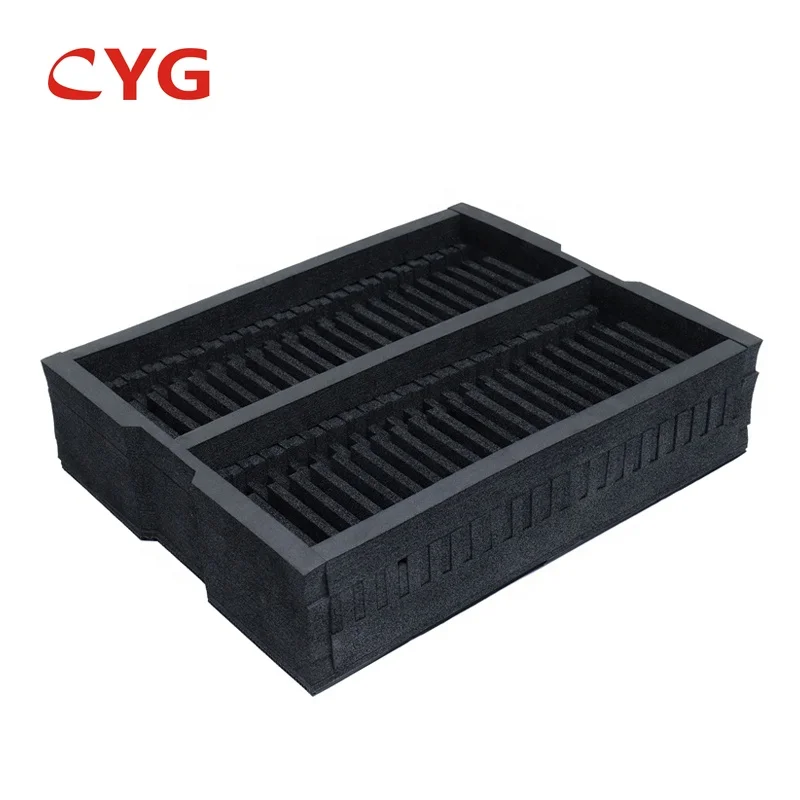

Turnover Tray Conductive Anti-static IXPE Foam Material Sheet

FOB Reference Price:Get Latest Price
$0.30 - $2.22 / Pieces | 1000 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CYG TEFA
Model Number:
ESD foam
Material:
PE
Thickness:
1-30mm
Size:
Custom Size
Name:
ESD turnover tray material
Application:
Electronics
Raw material:
LDPE
Density:
28-200 kg/m3
Type:
Extruded
Surface:
Smooth
Color:
black or as request
Certificate:
ROHS SGS ISO REACH
Feature:
Eco-friendly
Sample:
free
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Conventional packaging or packing according to customers' requests
Port
shenzhen
Picture Example:
package-img
package-img
Video Description
Product details

Brief introduction

The Conductive IXPE foam is closed cell soft foam which takes polyethylene (PE) as a raw material, through adding anti-static materials and then crosslinked by irradiation and foaming. After foaming, the conductive filler in the interior of sheet formed a conductive path/network, so as to achieve the purpose of static leakage.The dimension can be designed by customers' requirements, for opto electronic devices, microelectronic devices packaging, and its anti-static property will not be changed for post-processing.

Conductive PE foam / Anti-static foam

1. Excellent anti-static performance,surface resistivity and volume resistivity is very stable, usually in 103-106 Ω, at the same time, according to the customer requirement between adjusted.
2. Permanently anti-static;
3. Environmentally friendly, non-toxic, no odor;
4. Shockproof;
5. Good performance, can be processed to various shapes by customer requirements.

NO.
Composite Material
Content
Supplier
1
PE
70-90%
South Africa, Qatar, Daqing,Qilu Petrochemical
2
conduct/electric charcoal black
10-20%
Shandong Zibo
3
Azodicarbonamide
10-20%
Jiangsu Sopo, Hangzhou Haihong
4
Paraffin
1.0-2.0%
Shanghai Petrochemical
NO.
Item
Data
1
Color
Black
2
Times
10-30
3
Density
40-100Kg/m3
4
Surface resistivity
103-106 Ω/sq
5
Volume resistivity
103-106 Ω .cm
6
Abrasive potential
<50V
7
Electrostatic attenuating time
<1.0s

Features

1.Intrinsic conductive path/network, excellent anti-static performance;
2.Without the use of environmental humidity can make electrostatic quickly leaked, anti-static property isn't affected by environmental humidity;
3.Long term anti-static.

Image details
Product Processing
Packing and shipping
Why Choose Us

About us

CYG TEFA Co., Ltd has 17 years of production experience. We're the biggest and the most professional irradiation cross-linked polyethylene conductive foam manufacturer in China and has the most complete cross-linked polyethylene foam products.

Our main products are Cross-linked PE foam material, IXPE foam, XPE foam, Conductive IXPE foam; ESD foam tray, ESD packing material; Beach mat, camping mat, sleeping mat, yoga mat; etc.


CYG TEFA offers the best solution for polyethylene foam production based on long experience in the developing ,manufacturing PE foam.All the service are focused on quality of products and satisfied our customer.
We are committed to developing,manufacturing and selling cross-linked PE foam.

With annual production capacity of 6000 tons

All our products can be used for thermal insulation,waterproof,shockproof,etc. and also our products get the UL, ISO, SGS, Rohs, Reach , CE approval.

Our clients are iPhone, Samsung, Gree, Haier, TCL, Adidas, Nike, Flextronics, General Motors, BYD, PPL, etc. Now, we have 2 factories and 17 production lines...



Quality control

CYG has perfect quality control equipment and strict quality test procedure to ensure the quality and safety.

Equipment & technology

Introduction of Korean professional equipment and technology to meet customers' quality needs.

Service

Factory direct selling with lower price, sooner leadtime, better customized service.
Samples in stock can be arranged in one working day.


Main Products

XPE foam

Made by high temperature foaming after extrusion,cross-linked and foaming at the same time.it is the ideal foam for applications where support and durability are crucial.

IXPE foam

IXPE foam is produced by compounding PE with some special padding and foaming material,
then crosslinking by irradiation and foaming which is considered as polymer material.

PP foam

Irradiation cross-linked Polypropylene (IXPP) foam is a kind of high-performance closed cell foaming material which is made of polypropylene and various fillers, additive, and foaming agents various material.

Construction

Expansion joint fillers, water proofing of terraces , roofs, foundation wraps,
sound barrier underlay, false ceilings, structural glazing.

Automotive

Roof tops, engines, bonnets and drivers cabin insulation, door panels and seat linings, floor mats, carpet underlay, upholsteries, sun visors and car AC insulations etc.

HVAC

Pipe insulation,tube insulation,duct insulation.

FQA

What is closed-cell?

Polyethylene foam is closed-cell, meaning it consists of cells so tightly packed together that it gives the appearance of one uniform structure.

The reality is that the individual cells within polyethylene foam do not physically connect to one another.

This cellular formation is similar to fish caught in a fisherman's net.

Why choose Low-density polyethylene foam?

Low-density polyethylene foam has numerous applications because of its many desirable properties including water-resistance, chemical resistance, energy-absorbance, buoyancy and cushioning characteristics. Compressive strength is greater in denser foams, decreasing as density decreases.

Low-density foams tend to exhibit more compressive creep, meaning they become less thick over time than higher-density foams.

How can I know the suitable foam density I need?

Our PE foam density is between 25 kg/m3 and 240 kg/m3
We can provide the best solution for you according to the application, Density, hardness, thickness.And The free sample is available for your confirmation and text

What's the order procedure?

First we discuss foam products details by email or TM.
Then we issue you a PI for your confirmation. You will be requested to do prepaid full payment or deposit before we go into production.
After we get the deposit, we start to process the order. usually takes 7-15days if we don't have the items in stock.
Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.

How can I pay you?

After you confirm our PI, we will request you to pay. T/T (ABC bank) and Paypal, Western Union are the most usual ways we are using for freight fees of PE foam samples.

How do you take care when your clients received defective foam products?

replacement. If there are some defective foam products, we usually credit to our customer or replace in next shipment.

How do you check all PE foam on the production line?

We have spot inspection and finished product inspection of our foam materials.We check the PE foam materials when they go into next step production procedure.
